New

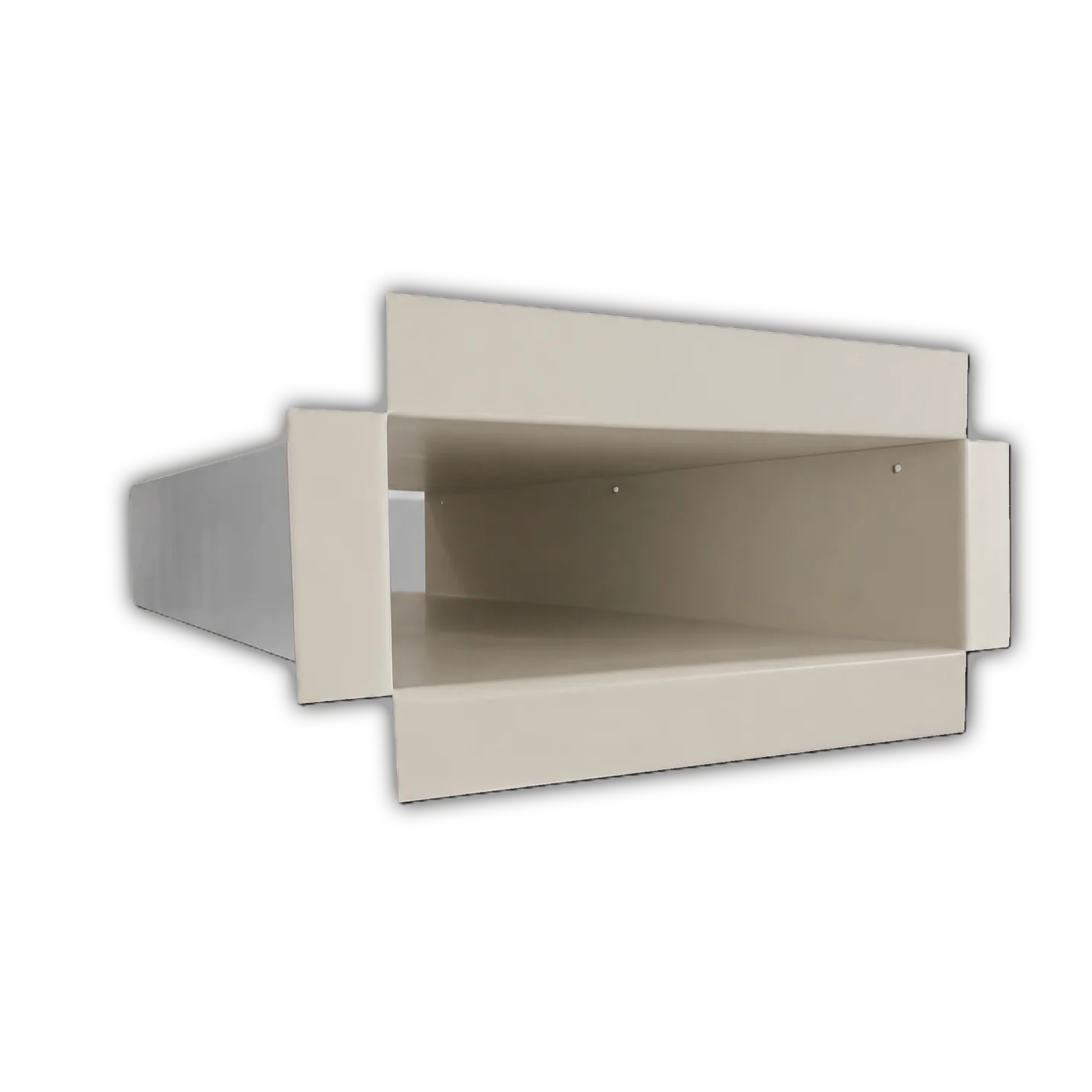

ProRoof Emergency Overflow TPO/FPO
Coated sheet metal, TPO/FPO flange · TPO/FPO membranes (hot-air welding)
Can't find the right size or have special requirements? Request a quote
Description
Emergency overflow for flat roofs that protects the structure against flooding if the roof drains become blocked. The flange is made in a version compatible with TPO/FPO membranes.
- The ProRoof TPO/FPO emergency overflow is a safety element of flat roof drainage systems.

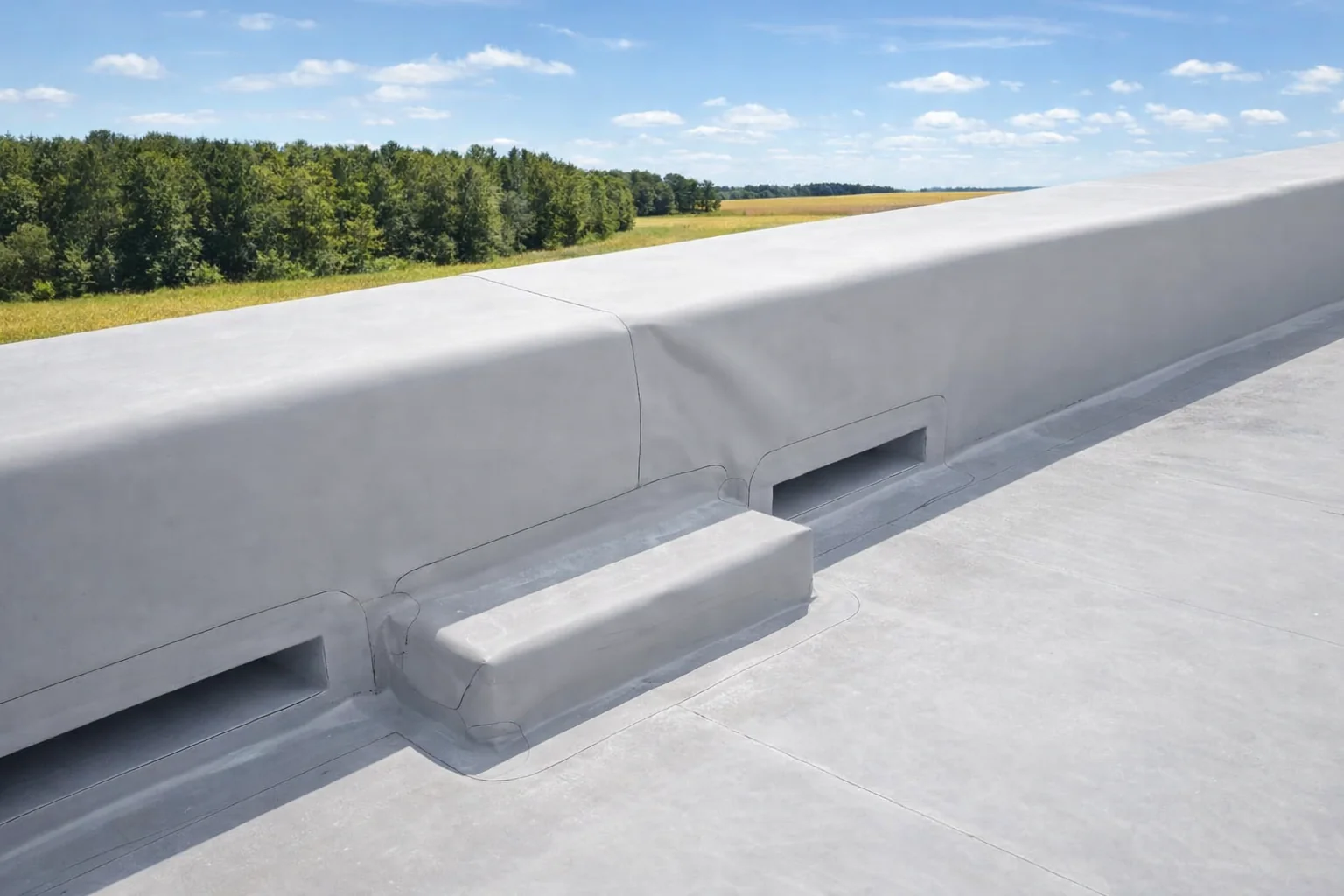

- The product is designed for installation in a parapet or an external wall of the building.
- The flange allows a watertight connection to TPO/FPO membranes by hot-air welding.
- The product is available in several dimensional variants; custom versions can be made.
Key features
- Flange for welding to TPO/FPO membrane
- Part of the emergency drainage system
- Customisable dimensions
- Optional painting to match the façade colour (extra charge)
Technical specification
| Parameter | Value |
|---|---|
| Material | Coated sheet metal, TPO/FPO flange |
| Application | Flat roofs – emergency drainage |
| Installation location | Parapet / external wall |
| Compatibility | TPO/FPO membranes (hot-air welding) |
| Colour | Grey – any RAL colour available for an extra charge |
| Operating temperature | −20 °C to +60 °C |

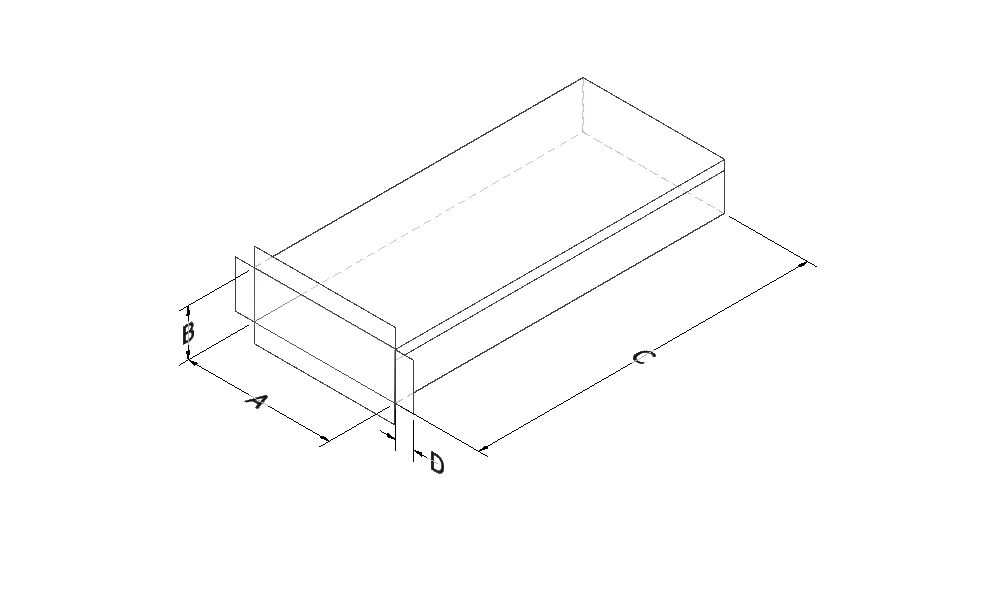

Documentation and drawings
FAQ
Is an emergency overflow required by regulations?
Whether an emergency overflow is mandatory depends on the building design and the drainage system adopted. In practice it significantly improves the safety of the building.
Is the product compatible with TPO/FPO membranes?
Yes, the product has a flange that allows hot-air welding to TPO/FPO membranes.
Can I order a different size?
Yes, we can make custom versions – please contact our technical department.
Request a quote
Need a size other than those in the configurator, have special installation requirements or a technical question about this product? Write to us and we will reply with an individual quotation or a proposed solution.
